Automatic Wire Stripping Cutting & Twisting Machine

Model No.︰X-5007
Brand Name︰XUXIN
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 26 Related Items
Prev2223242526Next

Product Description
We manufacture auto label dispensers, auto label rewinders, label cutting machines, wire stripper, wire stripping & twisting & cutting machine etc. High quality & low price!
Features:

This machine can strip, cut and twist multi-core wire full automatically!
Wire stripping & twisting machine X-5007 Specifications as following:

Model:

X-5007

Power:

AC 110V/220V/ 50/60Hz

Power:

Rated 300W

Display:

Full English LCD Display

Cutting length:

1mm-99999mm

Twisting length

Line head 0-30, line tail 0-20

Twisting way

Both sides or one side

Stripping length:

Line head 0-30, line tail 0-20

Cutting Tolerance:

(0.2±0.002xL) mm

Max. Middle Stripping Section:

13

Core cross-section cut-line:

0.1~2.5mm² ( AWG16#-AWG32#)

Single up to 4.5mm²

Conduit diameter:

Φ6

Appropriate wire stripping:

PVC, Teflon, glass and wire

Blade Material:

Hard tungsten steel

 Stripper speed (Article / h):

L=100mm, 3000-10000pcs/h

 Drive Mode:

Four-wheel drive

Weight:

40kg

Dimensions:

450*365*265(mm)

Adjustable speed

0-6

Payment Terms︰TT, Western Union, Paypal
Packing︰Standard Export Package
Lead Time︰within 3 days after receipt of payment

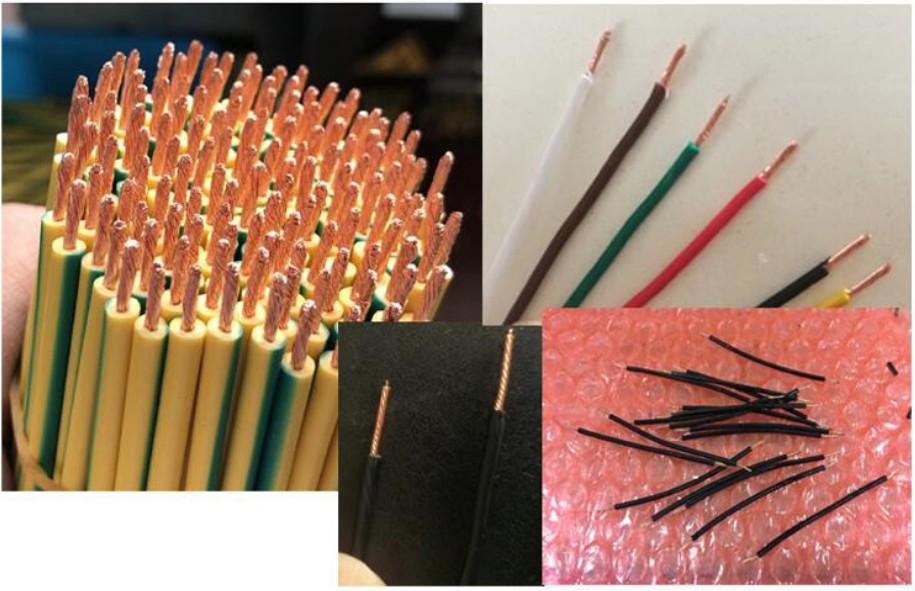

Product Image
